MOTOR Control System by PLC
PLC Mitsubishi fx-Series
Basic Command
NO : Normally Open : LD -----] [----------------------------
NC : Normally Close : LD Not -----] / [----------------------------
SET : Set ----------------------------[SET output]
RST : Reset ----------------------------[RST output]
OUT : Output ----------------------------(Y000)
T : Timer ----------------------------(T0 K100)
Comment : K is Time Value
Direct Start : NO / NC / OP
Basic Command
NO : Normally Open : LD -----] [----------------------------
NC : Normally Close : LD Not -----] / [----------------------------
SET : Set ----------------------------[SET output]
RST : Reset ----------------------------[RST output]
OUT : Output ----------------------------(Y000)
T : Timer ----------------------------(T0 K100)
Comment : K is Time Value
Direct Start : NO / NC / OP

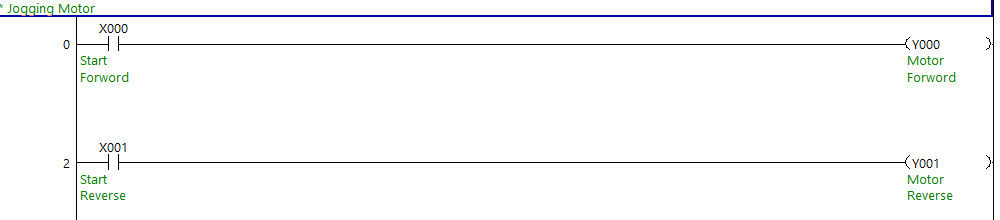

Jogging : NO / NC / OP
Comment :
if you use X001 NC to Lock Motor forword & use X000 NC to Lock Motor Reverse. That is a Safety.
Reversing after STOP :
DIRECT REVERSE :
Edit : X001 is Start Reverse
